本源码包含多传感器源码，一次一个传感器固件
烧录注意事项：（针脚：3V3/IO1/GND）
日常刷机只需要
firmware.bin一个；另外两个是“打底”的，一般只在首次/换分区表时才刷。串口 OTA 只传firmware.bin，不用管另外两个。（1）build后，三个 bin 各是什么、刷到哪
文件 大小 烧录地址 作用 什么时候需要刷 bootloader.bin15KB 0x0 上电引导程序 几乎不用重刷（除非换芯片/改引导配置） partitions.bin3KB 0x8000 分区表 改了 partitions_sensor.csv才需要firmware.bin275KB 0x20000 (ota_0) 你的程序本体 每次改代码都要刷
（2）串口打印
（2）固件源码（默认生成IR人体红外传感器）
烧录时可修改宏定义
#ifndef SENSOR_UNDER_TEST #define SENSOR_UNDER_TEST SENSOR_IR // 更换固件就换这个（只在IO1测试时） #endif #if SENSOR_UNDER_TEST == SENSOR_IR #define CUR_SENSOR "IR(红外)" #elif SENSOR_UNDER_TEST == SENSOR_SOUND #define CUR_SENSOR "SOUND(声音)" #elif SENSOR_UNDER_TEST == SENSOR_FLAME #define CUR_SENSOR "FLAME(火焰)" #elif SENSOR_UNDER_TEST == SENSOR_VIB #define CUR_SENSOR "VIB(震动)" #elif SENSOR_UNDER_TEST == SENSOR_TOUCH #define CUR_SENSOR "TOUCH(触摸)" #else #error "SENSOR_UNDER_TEST 未识别，请使用 SENSOR_IR/SOUND/FLAME/VIB/TOUCH" #endif
/*
* t_sensor.cpp — 传感器专用测试固件（无摄像头 / 无 LCD）
*
* 烧录: platformio run -e sensor -t upload
*
* 功能:

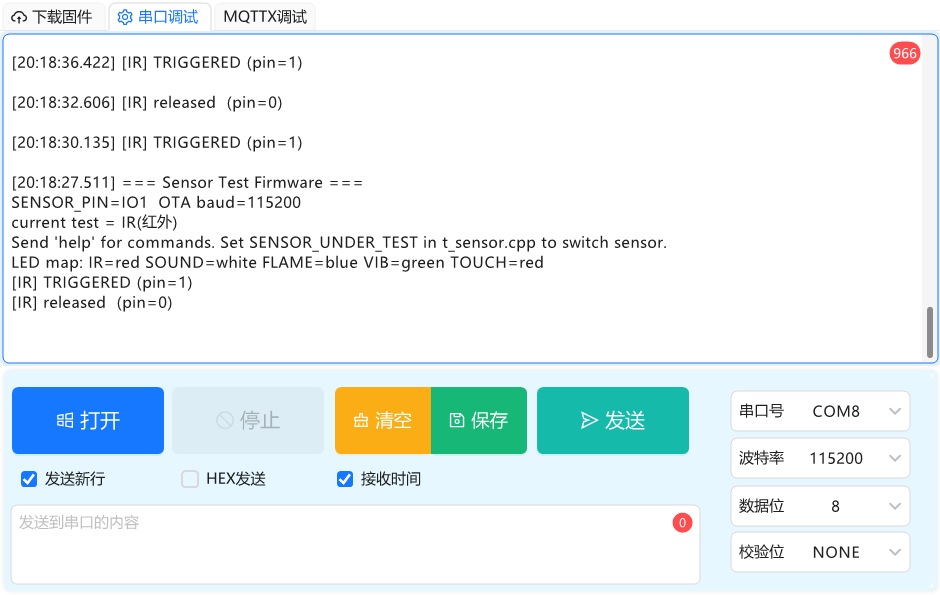

* 1) IO1 接各类数字传感器，用板载 WS2812(IO48) 指示灯实时反馈触发/释放；
* 2) 串口打印每次状态翻转（触发 / 释放）便于现场核对；
* 3) 内置「原生串口 OTA」升级：发 serialota 进入接收态，配套 tools/serial_ota.py
* 通过同一串口把 .bin 分帧 + CRC 流式写入【备用 OTA 槽】并重启。
*
* 设计要点（与项目既有约定一致）:
* · IO1 = GPIO1：全板唯一空闲 GPIO（J2 排针引出），原生 USB CDC(COM8) 不占用它；
* · 板载 WS2812 单像素，复用核心 neopixelWrite（红灯/绿灯/蓝灯/白灯）；
* · 各传感器为【独立方法】在 loop 中调用，一次只测一个：改顶部 SENSOR_UNDER_TEST
* 宏重新烧录即可（也可把其它 testXxx() 直接注释掉）；
* · 触发电平每类传感器可配（ACTIVE_LEVEL 宏），模块不同可能相反，实测不符就取反；
* · LED 反馈映射（按需求）：红外=红 震动=绿 火焰=蓝 声音=白 触摸=红。
*

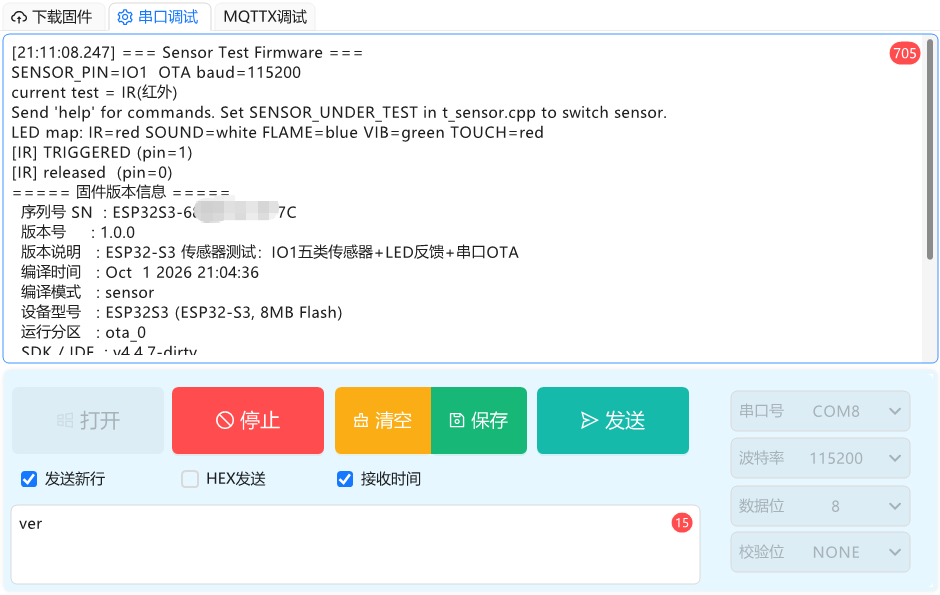

* 串口命令: help / ver / sn / info / led red|green|blue|white|off
* restart / bootloader / serialota
*/
#include <Arduino.h>
// 本固件的编译模式标识（覆盖 firmware_version.h 默认的 voice_sr）
#define FW_MODE_OVERRIDE "sensor"
#include "pins.h"
#include "esp_ota_ops.h"
#include "esp_partition.h"
#include "Update.h"
#include "firmware_version.h"
#include "bootloader_enter.h"
// ====================== 传感器选择（一次只测一个）======================
#define SENSOR_IR 1
#define SENSOR_SOUND 2
#define SENSOR_FLAME 3
#define SENSOR_VIB 4
#define SENSOR_TOUCH 5
#ifndef SENSOR_UNDER_TEST
#define SENSOR_UNDER_TEST SENSOR_IR // 更换固件就换这个（只在IO1测试时）
#endif
#if SENSOR_UNDER_TEST == SENSOR_IR
#define CUR_SENSOR "IR(红外)"
#elif SENSOR_UNDER_TEST == SENSOR_SOUND
#define CUR_SENSOR "SOUND(声音)"
#elif SENSOR_UNDER_TEST == SENSOR_FLAME
#define CUR_SENSOR "FLAME(火焰)"
#elif SENSOR_UNDER_TEST == SENSOR_VIB
#define CUR_SENSOR "VIB(震动)"
#elif SENSOR_UNDER_TEST == SENSOR_TOUCH
#define CUR_SENSOR "TOUCH(触摸)"
#else
#error "SENSOR_UNDER_TEST 未识别，请使用 SENSOR_IR/SOUND/FLAME/VIB/TOUCH"
#endif
// ====================== 硬件引脚与电平 ======================
#define SENSOR_PIN 1 // IO1：全板唯一空闲 GPIO
// 各传感器触发电平（模块差异可能相反，实测灯反向就把对应宏改一下）：
// LOW = 触发时引脚被拉低；HIGH = 触发时引脚被拉高
#define IR_ACTIVE_LEVEL HIGH // 微型人体红外 PIR：触发后输出 3V 高电平（按规格书）
#define SOUND_ACTIVE_LEVEL HIGH // 声音（LM393 比较器常见 OUT 高有效）
#define FLAME_ACTIVE_LEVEL LOW // 火焰（IR 火焰探头常见 OUT 低有效）
#define VIB_ACTIVE_LEVEL HIGH // 震动（SW-420 常见 震动时 OUT 高）
#define TOUCH_ACTIVE_LEVEL HIGH // 触摸（TTP223 触摸时 OUT 高）
// ====================== 串口 OTA 参数 ======================
#define OTA_BAUDRATE 115200
#define OTA_CHUNK 1024
#define OTA_HEADER_SIZE 16
#define OTA_FRAME_TIMEOUT 8000 // 每帧/头等待上限(ms)，超时即放弃
#define OTA_ACK 0x06
#define OTA_NAK 0x15
// 头布局：4B "SOF1" + uint32 LE total + uint32 LE file_crc32 + uint32 LE flags(保留=0)
// ====================== 诊断（pull / raw 命令）======================
static int g_pullMode = INPUT; // 当前引脚模式（INPUT/INPUT_PULLUP/INPUT_PULLDOWN）
static bool g_rawPrint = false; // raw 命令：周期打印引脚原始电平
static uint8_t g_rawLastLevel = 0xFF; // raw 模式里上次电平，0xFF=未初始化
static void applyPinMode()
{
pinMode(SENSOR_PIN, g_pullMode);
}
// ====================== LED 反馈（板载 WS2812 单像素）======================
static void setLed(uint8_t r, uint8_t g, uint8_t b)
{
neopixelWrite(PIN_WS2812, r, g, b);
delayMicroseconds(80); // WS2812 帧后 LOW>50us 才锁存，补余量确保可靠
}
static void ledOff() { setLed(0, 0, 0); }
static void ledRed() { setLed(255, 0, 0); }
static void ledGreen() { setLed(0, 255, 0); }
static void ledBlue() { setLed(0, 0, 255); }
static void ledWhite() { setLed(255, 255, 255); }
// ====================== CRC（与 PC 端 serial_ota.py 严格一致）======================
static uint32_t crc32Step(uint32_t crc, const uint8_t *data, size_t len)
{
for (size_t i = 0; i < len; i++)
{
crc ^= data[i];
for (int k = 0; k < 8; k++)
crc = (crc >> 1) ^ (0xEDB88320UL & -(int32_t)(crc & 1));
}
return crc;
}
static uint16_t crc16Step(uint16_t crc, const uint8_t *data, size_t len)
{
for (size_t i = 0; i < len; i++)
{
crc ^= data[i];
for (int k = 0; k < 8; k++)
crc = (crc >> 1) ^ (0xA001 & -(int16_t)(crc & 1));
}
return crc;
}
// ====================== 通用数字传感器轮询（带去抖/保持）======================
// 部分模块（微型 PIR 等）无人时会“触发→保持2s→封锁2s→再触发”自激振荡，仅靠边沿判断会狂刷。
// 这里要求新电平持续 >= debounceMs 才算数，从而滤掉短促自激、保留真实持续触发。
struct SensorState
{
bool last; // 已提交（已点灯/已打印）的状态
bool pending; // 当前候选电平
uint32_t sinceMs; // pending 起始时刻
bool init;
};
static void pollSensor(const char *name, int activeLevel,
void (*onLed)(void), void (*offLed)(void),
SensorState &st, uint32_t debounceMs)
{
int v = digitalRead(SENSOR_PIN);
bool raw = (v == activeLevel);
if (!st.init) // 上电首帧：按当前电平设灯，不打印（避免误报）
{
st.last = raw;
st.pending = raw;
st.sinceMs = millis();
st.init = true;
if (raw)
onLed();
else
offLed();
return;
}
if (raw != st.pending)
{
st.pending = raw;
st.sinceMs = millis();
}
if (raw != st.last && (millis() - st.sinceMs) >= debounceMs)
{
st.last = raw;
if (raw)
{
onLed();
Serial.printf("[%s] TRIGGERED (pin=%d)\n", name, v);
}
else
{
offLed();
Serial.printf("[%s] released (pin=%d)\n", name, v);
}
}
}
// ---- 五个独立测试方法（一次只跑一个，由 SENSOR_UNDER_TEST 分发）----
// 去抖时长(ms)：微型 PIR 自激周期约 4s（2s 触发 + 2s 封锁），IR 设 >2s 可滤掉无人自激、
// 又不影响“人在场连续触发”；其它数字传感器通常无自激，设 0 即时响应。
#define IR_DEBOUNCE_MS 2200
#define SOUND_DEBOUNCE_MS 0
#define FLAME_DEBOUNCE_MS 0
#define VIB_DEBOUNCE_MS 0
#define TOUCH_DEBOUNCE_MS 0
static SensorState g_ir = {false, false, 0, false};
static void testIr()
{
pollSensor("IR", IR_ACTIVE_LEVEL, ledRed, ledOff, g_ir, IR_DEBOUNCE_MS);
}
static SensorState g_snd = {false, false, 0, false};
static void testSound()
{
pollSensor("SOUND", SOUND_ACTIVE_LEVEL, ledWhite, ledOff, g_snd, SOUND_DEBOUNCE_MS);
}
static SensorState g_flame = {false, false, 0, false};
static void testFlame()
{
pollSensor("FLAME", FLAME_ACTIVE_LEVEL, ledBlue, ledOff, g_flame, FLAME_DEBOUNCE_MS);
}
static SensorState g_vib = {false, false, 0, false};
static void testVibration()
{
pollSensor("VIB", VIB_ACTIVE_LEVEL, ledGreen, ledOff, g_vib, VIB_DEBOUNCE_MS);
}
static SensorState g_touch = {false, false, 0, false};
static void testTouch()
{
pollSensor("TOUCH", TOUCH_ACTIVE_LEVEL, ledRed, ledOff, g_touch, TOUCH_DEBOUNCE_MS);
}
static void runSensorTest()
{
#if SENSOR_UNDER_TEST == SENSOR_IR
testIr();
#elif SENSOR_UNDER_TEST == SENSOR_SOUND
testSound();
#elif SENSOR_UNDER_TEST == SENSOR_FLAME
testFlame();
#elif SENSOR_UNDER_TEST == SENSOR_VIB
testVibration();
#elif SENSOR_UNDER_TEST == SENSOR_TOUCH
testTouch();
#endif
}
// ====================== 串口 OTA（原生，接收态）======================
enum OtaState
{
OTA_IDLE = 0,
OTA_WAIT_HEADER,
OTA_RECV_DATA,
OTA_DONE
};
static OtaState g_otaState = OTA_IDLE;
static bool g_serialOta = false;
static uint32_t g_otaTotal = 0; // 期望总字节
static uint32_t g_otaRecv = 0; // 已收字节
static uint32_t g_otaCalcCrc = 0; // 运行 CRC32（seed=0xFFFFFFFF）
static uint32_t g_otaExpectedCrc = 0; // 头里带的文件 CRC32
static unsigned long g_otaLastMs = 0;
// 严格按超时从串口读满 len 字节（避免 readBytes 半截返回导致误判）
static int readExact(uint8_t *buf, int len, unsigned long timeoutMs)
{
unsigned long t0 = millis();
int got = 0;
while (got < len)
{
if (Serial.available())
buf[got++] = (uint8_t)Serial.read();
else if (millis() - t0 > timeoutMs)
break;
else
delay(1);
}
return got;
}
static void serialOtaAbort()
{
Update.end(false);
g_serialOta = false;
g_otaState = OTA_IDLE;
ledRed();
delay(200);
ledOff();
Serial.println("[OTA] aborted, back to sensor test");
}
static void serialOtaEnter()
{
g_serialOta = true;
g_otaState = OTA_WAIT_HEADER;
g_otaTotal = g_otaRecv = 0;
g_otaCalcCrc = 0xFFFFFFFF;
g_otaExpectedCrc = 0;
g_otaLastMs = millis();
Serial.println("[OTA] entering serial receive mode");
Serial.println("SOF_READY"); // PC 端以此判断设备就绪
Serial.flush();
}
// 每 loop 迭代调用一次；进入接收态后普通串口命令解析暂停。返回 true 表示仍在 OTA 态。
static void serialOtaTask()
{
if (g_otaState == OTA_WAIT_HEADER)
{
uint8_t hdr[OTA_HEADER_SIZE];
if (readExact(hdr, OTA_HEADER_SIZE, OTA_FRAME_TIMEOUT) != OTA_HEADER_SIZE)
{
if (millis() - g_otaLastMs > OTA_FRAME_TIMEOUT)
{
Serial.println("[OTA] timeout waiting header");
serialOtaAbort();
}
return;
}
if (memcmp(hdr, "SOF1", 4) != 0)
{
Serial.println("[OTA] bad magic");
serialOtaAbort();
return;
}
g_otaTotal = (uint32_t)hdr[4] | ((uint32_t)hdr[5] << 8) |
((uint32_t)hdr[6] << 16) | ((uint32_t)hdr[7] << 24);
g_otaExpectedCrc = (uint32_t)hdr[8] | ((uint32_t)hdr[9] << 8) |
((uint32_t)hdr[10] << 16) | ((uint32_t)hdr[11] << 24);
// hdr[12..15] = flags（保留）
if (!Update.begin(g_otaTotal, U_FLASH))
{
Serial.printf("[OTA] Update.begin fail: %s\n", Update.errorString());
Serial.write(OTA_NAK);
serialOtaAbort();
return;
}
g_otaRecv = 0;
g_otaCalcCrc = 0xFFFFFFFF;
g_otaState = OTA_RECV_DATA;
g_otaLastMs = millis();
Serial.printf("[OTA] header ok, total=%u bytes\n", g_otaTotal);
Serial.write(OTA_ACK);
Serial.flush();
return;
}
if (g_otaState == OTA_RECV_DATA)
{
uint8_t lenb[2];
if (readExact(lenb, 2, OTA_FRAME_TIMEOUT) != 2)
{
if (millis() - g_otaLastMs > OTA_FRAME_TIMEOUT)
{
Serial.println("[OTA] timeout waiting frame len");
serialOtaAbort();
}
return;
}
uint16_t flen = (uint16_t)(lenb[0] | (lenb[1] << 8));
if (flen == 0)
{
// 结束帧：再读 2 字节尾巴（忽略），进入校验
uint8_t tail[2];
readExact(tail, 2, 1000);
g_otaState = OTA_DONE;
return;
}
uint8_t *buf = (uint8_t *)malloc(flen);
if (!buf)
{
Serial.write(OTA_NAK);
return;
}
if (readExact(buf, flen, OTA_FRAME_TIMEOUT) != flen)
{
free(buf);
if (millis() - g_otaLastMs > OTA_FRAME_TIMEOUT)
{
Serial.println("[OTA] timeout frame data");
serialOtaAbort();
}
else
Serial.write(OTA_NAK);
return;
}
uint8_t cb[2];
if (readExact(cb, 2, OTA_FRAME_TIMEOUT) != 2)
{
free(buf);
if (millis() - g_otaLastMs > OTA_FRAME_TIMEOUT)
{
Serial.println("[OTA] timeout frame crc");
serialOtaAbort();
}
else
Serial.write(OTA_NAK);
return;
}
uint16_t fcrc = (uint16_t)(cb[0] | (cb[1] << 8));
if (crc16Step(0xFFFF, buf, flen) != fcrc)
{
free(buf);
Serial.write(OTA_NAK); // PC 端会重传同一帧
return;
}
size_t w = Update.write(buf, flen);
free(buf);
if (w != flen)
{
Serial.println("[OTA] write flash fail");
serialOtaAbort();
return;
}
g_otaCalcCrc = crc32Step(g_otaCalcCrc, buf, flen);
g_otaRecv += flen;
g_otaLastMs = millis();
Serial.write(OTA_ACK);
uint32_t pct = g_otaTotal ? g_otaRecv * 100 / g_otaTotal : 100;
static uint32_t lastPct = 0;
if (pct / 10 != lastPct / 10)
{
lastPct = pct / 10;
Serial.printf("[OTA] %u%%\n", pct);
}
return;
}
if (g_otaState == OTA_DONE)
{
Serial.printf("[OTA] recv %u/%u bytes, verify...\n", g_otaRecv, g_otaTotal);
if (g_otaRecv != g_otaTotal)
{
Serial.println("[OTA] length mismatch");
serialOtaAbort();
return;
}
uint32_t finalCrc = ~g_otaCalcCrc;
if (finalCrc != g_otaExpectedCrc)
{
Serial.printf("[OTA] crc32 mismatch got=%08x expect=%08x\n", finalCrc, g_otaExpectedCrc);
serialOtaAbort();
return;
}
if (!Update.end(true)) // 校验镜像 + 设启动分区
{
Serial.printf("[OTA] verify fail: %s\n", Update.errorString());
serialOtaAbort();
return;
}
// 兜底：显式把启动分区指向刚写入的槽
const esp_partition_t *running = esp_ota_get_running_partition();
const esp_partition_t *next = esp_ota_get_next_update_partition(running);
if (next)
esp_ota_set_boot_partition(next);
Serial.println("[OTA] OK, rebooting into new firmware");
ledGreen();
delay(200);
Serial.flush();
ESP.restart();
return;
}
}
// ====================== 串口命令 ======================
static void printHelp()
{
Serial.println("===== Sensor Test 串口命令 =====");
Serial.println(" help 显示本帮助");
Serial.println(" ver / version 打印固件版本/编译时间/SN/运行分区");
Serial.println(" sn 打印设备序列号 SN");
Serial.println(" info 打印当前测试传感器与 LED 映射");
Serial.println(" led red|green|blue|white|off 手动点灯自检");
Serial.println(" restart / reboot 软重启");
Serial.println(" bootloader 免按 BOOT 键进入 ROM 下载模式(esptool)");
Serial.println(" serialota 进入原生串口 OTA 接收态(配合 tools/serial_ota.py)");
Serial.println(" pull none|up|down 实时切引脚上/下拉(诊断悬空/开漏输出)");
Serial.println(" raw 开/关 原始电平打印(500ms一次)");
Serial.println("----- 当前配置 -----");
Serial.printf(" SENSOR_PIN = IO%d\n", SENSOR_PIN);
Serial.printf(" 当前测试 = %s\n", CUR_SENSOR);
Serial.println(" LED 映射: 红外=红 震动=绿 火焰=蓝 声音=白 触摸=红");
Serial.println(" 切换传感器: 改 t_sensor.cpp 顶部 SENSOR_UNDER_TEST 宏后重新烧录");
}
static void printInfo()
{
Serial.printf("[INFO] SENSOR_PIN=IO%d current=%s\n", SENSOR_PIN, CUR_SENSOR);
Serial.println("[INFO] LED: IR=红 SOUND=白 FLAME=蓝 VIB=绿 TOUCH=红");
Serial.printf("[INFO] active levels: IR=%d SOUND=%d FLAME=%d VIB=%d TOUCH=%d (0=LOW,1=HIGH)\n",
(int)(IR_ACTIVE_LEVEL == HIGH), (int)(SOUND_ACTIVE_LEVEL == HIGH),
(int)(FLAME_ACTIVE_LEVEL == HIGH), (int)(VIB_ACTIVE_LEVEL == HIGH),
(int)(TOUCH_ACTIVE_LEVEL == HIGH));
}
static void handleSerialCmd(const String &s)
{
String low = s;
low.toLowerCase();
if (low == "help" || low == "?")
{
printHelp();
}
else if (low == "ver" || low == "version")
{
printVersionSerial();
}
else if (low == "sn")
{
Serial.printf("SN=%s\n", getDeviceSN().c_str());
}
else if (low == "info")
{
printInfo();
}
else if (low == "restart" || low == "reboot")
{
Serial.println("rebooting...");
delay(200);
ESP.restart();
}
else if (low == "bootloader")
{
Serial.println("[SYS] 即将重启进入 ROM 下载模式(免按 BOOT 键)...");
Serial.println("[SYS] 之后用 esptool / tools/serial_flash.py 烧录");
delay(300);
esp_restart_into_bootloader_compat();
}
else if (low == "serialota")
{
serialOtaEnter();
}
else if (low.startsWith("pull "))
{
// 实时切换引脚上/下拉：诊断「开漏输出/悬空漂移」类问题
String m = low.substring(5);
m.trim();
if (m == "none")
g_pullMode = INPUT;
else if (m == "up")
g_pullMode = INPUT_PULLUP;
else if (m == "down")
g_pullMode = INPUT_PULLDOWN;
else
{
Serial.println("pull usage: pull none|up|down");
return;
}
applyPinMode();
Serial.printf("[PIN] IO%d pinMode -> %s\n", SENSOR_PIN,
g_pullMode == INPUT ? "INPUT" : g_pullMode == INPUT_PULLUP ? "INPUT_PULLUP"
: "INPUT_PULLDOWN");
}
else if (low == "raw")
{
g_rawPrint = !g_rawPrint;
g_rawLastLevel = 0xFF;
Serial.printf("[RAW] %s (每500ms打印一次 IO%d 原始电平)\n",
g_rawPrint ? "ON" : "OFF", SENSOR_PIN);
}
else if (low.startsWith("led "))
{
String c = low.substring(4);
c.trim();
if (c == "red")
ledRed();
else if (c == "green")
ledGreen();
else if (c == "blue")
ledBlue();
else if (c == "white")
ledWhite();
else if (c == "off")
ledOff();
else
{
Serial.println("led usage: led red|green|blue|white|off");
return;
}
Serial.printf("[LED] set %s\n", c.c_str());
}
else
{
Serial.printf("unknown: '%s' (send help)\n", s.c_str());
}
}
// ====================== setup / loop ======================
void setup()
{
Serial.begin(OTA_BAUDRATE);
Serial.setTxTimeoutMs(0);
delay(1000);
applyPinMode(); // 数字传感器（模块自带输出/上拉，可用 pull 命令实时改）
pinMode(PIN_WS2812, OUTPUT);
ledOff();
Serial.println("=== Sensor Test Firmware ===");
Serial.printf("SENSOR_PIN=IO%d OTA baud=%d\n", SENSOR_PIN, OTA_BAUDRATE);
Serial.printf("current test = %s\n", CUR_SENSOR);
Serial.println("Send 'help' for commands. Set SENSOR_UNDER_TEST in t_sensor.cpp to switch sensor.");
Serial.printf("LED map: IR=red SOUND=white FLAME=blue VIB=green TOUCH=red\n");
}
void loop()
{
// 串口 OTA 接收态：抢占整个 loop，暂停传感器轮询与命令解析
if (g_serialOta)
{
serialOtaTask();
return;
}
// 串口命令：逐字节累积 + 换行即执行 + 80ms 静默判为一条（兼容带/不带换行两种发送）
static char rxBuf[64];
static int rxLen = 0;
static unsigned long rxLast = 0;
while (Serial.available() > 0)
{
char c = (char)Serial.read();
rxLast = millis();
if (c == '\n' || c == '\r')
{
if (rxLen > 0)
{
rxBuf[rxLen] = 0;
handleSerialCmd(String(rxBuf));
rxLen = 0;
}
}
else if (rxLen < (int)sizeof(rxBuf) - 1)
{
rxBuf[rxLen++] = c;
}
}
if (rxLen > 0 && (millis() - rxLast) > 80)
{
rxBuf[rxLen] = 0;
handleSerialCmd(String(rxBuf));
rxLen = 0;
}
// raw 诊断：每 500ms 打印一行引脚原始电平（看电平是真跳变还是打印边沿误判）
if (g_rawPrint)
{
static unsigned long lastRawMs = 0;
unsigned long now = millis();
if (now - lastRawMs >= 500)
{
lastRawMs = now;
Serial.printf("[%lu.%03lu] raw pin=%d\n", now / 1000, now % 1000,
(int)digitalRead(SENSOR_PIN));
}
}
// 一次只测一个传感器
runSensorTest();
delay(20);
}
